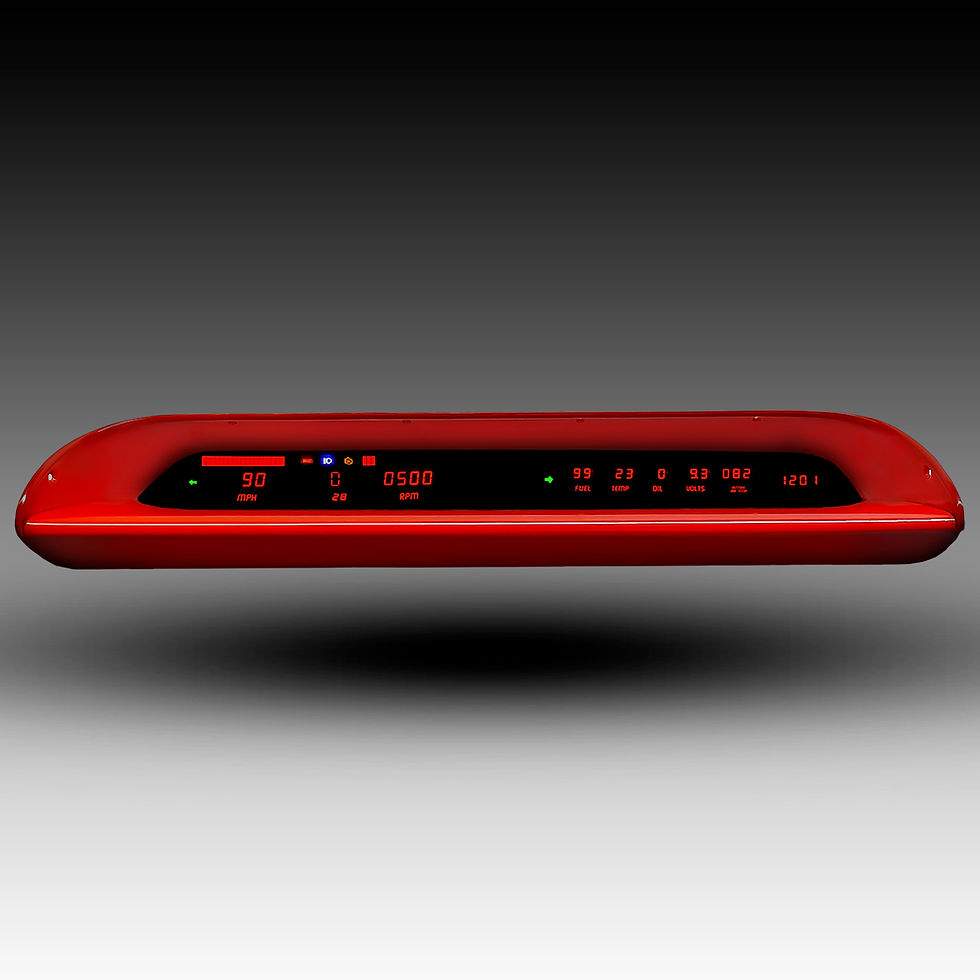

Upgrade your 1963-1964 Chevrolet Impala with the Intellitronix DP1204 LED Digital Replacement Gauge Panel, designed to provide an elegant, modern update to your vehicle’s interior. The vibrant, crisp, and easy-to-read lights increase accuracy and give your car a high-tech look. The gauge panel includes direct fit printed circuit boards, a custom fit "smoked" plexiglass faceplate, a universal temperature sending unit, an oil pressure sending unit, and a speedometer sending unit with a sender and sensor for vehicles without electronic transmission or cruise control. Installation instructions are included.
- The speedometer reads up to 255 MPH and features an odometer, trip meter, and one-button calibration, regardless of tire size, gear ratio, or transmission. It also includes 0-60 time with 1⁄4 mile elapse time plus high-speed recall, all accessible with the push of a button. The speedometer can be used with electronic cruise control senders or the included S9013 universal speedometer sending unit if your vehicle is not equipped with a functional cruise control. The tachometer displays 0-6000 RPM in 300 RPM increments and is programmable for 4-6-8-cylinder engines. The speedometer and tachometer are combined into a single unit.
- Water Temperature: Displays a 100-300°F range with senderincluded. Please specify the bushing size for the sender; we normally send a 1/2 inch one, but a 3/8 inch one can be sent upon request. Just add a note at checkout; otherwise, you will need to get the correct bushing on your own.
- Oil Pressure: Reads a 0-100 PSI range and includes the oil pressure sender.
- Voltmeter: Displays a 7.0-18.0 volts range and does not require a sending unit.
Outside Air Temperature: It has 0-250 Fahrenheit degree range accuracy.
- Fuel Level: Reads a 0-99% range in 1% increments and works with the existing GM fuel level sending unit.
- The panel also includes turn signals and a high beam indicator.
The clock displays time in hours and minutes.
Note: Bezel not included.
Features:
- Available Colors: White, Red, Blue, Teal, and Green
- Speedometer Reading: Order your speedometer in either MPH or KPH
- Accessories: All required sending and sensor units are included
- Custom Gear Shifter Optional: Customize your gear shifter to display any number, such as the year of your Impala, or opt for a traditional gear shift display. Gear Shift Indicator Optional for AUTOMATIC TRANSMISSIONS ONLY
Enhance your 1963-1964 Chevy Impala with the Intellitronix DP1204 LED Digital Replacement Gauge Panel for a sleek, functional, and customizable driving experience.
GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for: Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
1963-1964 Chevy Impala Digital Panel
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently. If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
