It comes with factory lifetime warranty; Faceplate completely blacks out when ignition is off. The Digital Revolution is here for your car.

Includes speedo, tachometer, water temp, oil pressure, voltmeter, user selectable fuel level gauge, turn signals, and high beam indicator.

Completely blacked out when the ignition is off. No logos, legends, etc.

Automatic nighttime dimming.

Unit measures 13.5 in. wide, 2.5 in. high, and 3/4 in. deep.

Ultra-Bright LEDs.

Nighttime dimmer.

Voltmeter with high and low voltage alarm, reads from 7.0 to 25.5.

Oil Pressure Gauge, reads from 0-100 psi.

Speedometer, reads up to 255 MPH (KPH is also available--please just send a note to seller when you order for that option), includes odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time (ET).



Tachometer reads from 0 to 9,900 in 100 RPM increments.


Water Temperature Gauge, reads from 50 to 350 degrees Fahrenheit (Celsius is available upon request--please just send a note to seller when you order) .

Fuel Gauge, programmable to work with Ford, GM, Chrysler, VDO, and aftermarket sending units. Reads from 0-99%.

Includes Right and Left LED turn signal indicators.

Includes High Beam LED indicator.



All necessary sending units including speedo, water, and oil; printed circuit board; smoked Plexiglas lens; hardware; and instructions.

Includes Speedometer sending unit (if you need a Ford sending unit, then please send a note to seller and we will send one--otherwise, you will get the GM/Mopar/VW one and will have to order the Ford one separately), water temperature sending unit (Sender S8013; Please send a note to seller if you need a 3/8" bushing because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own), and oil pressure sending unit (Sender S8434).

Lifetime warranty!   Made in the USA! Free Shipping!



GPS Option: The Intellitronix GPS Speedometer Sending Unit offers high-accuracy readings with a simple 3-wire hookup, compatible with standard 4000, 8000, or 16000 pulse-per-mile speedometers. With built-in GPS technology and a compact design, it eliminates speed inaccuracies from tire changes or gear ratios for unmatched precision.

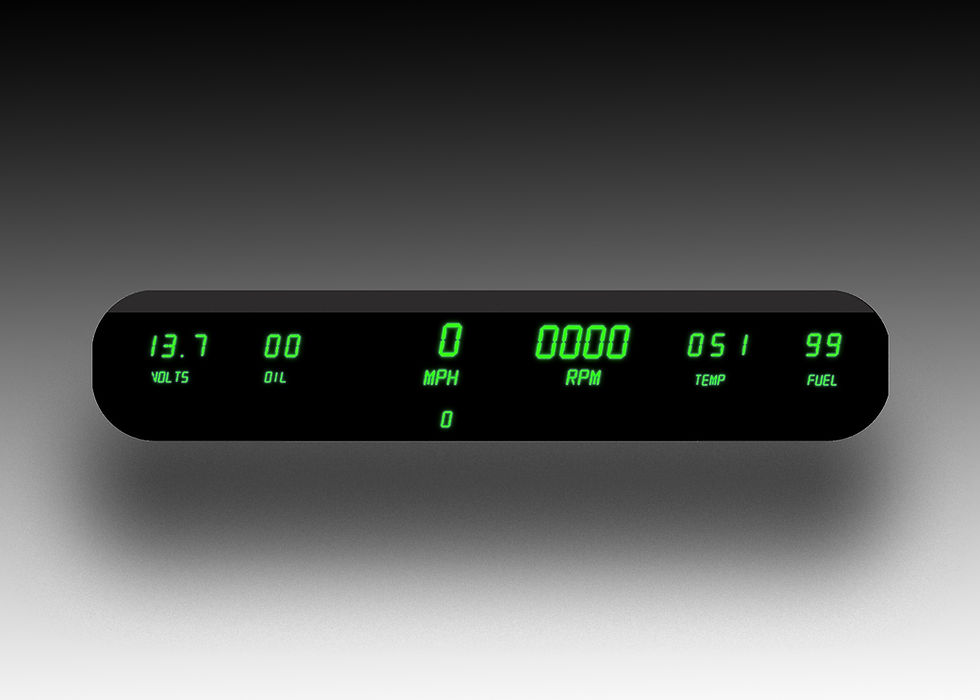

6 Gauge Digital Universal Panel DP10002

SKU: DP10002
$399.95Price
LED Color Choices
  • Not sure if you're ready to tackle the installation process? Click here to see how easy it can really be to install a new Intellitronix 6 Gauge Panel today!
