1969-1970 Ford Mustang LED Digital Gauge Panel - DP7003

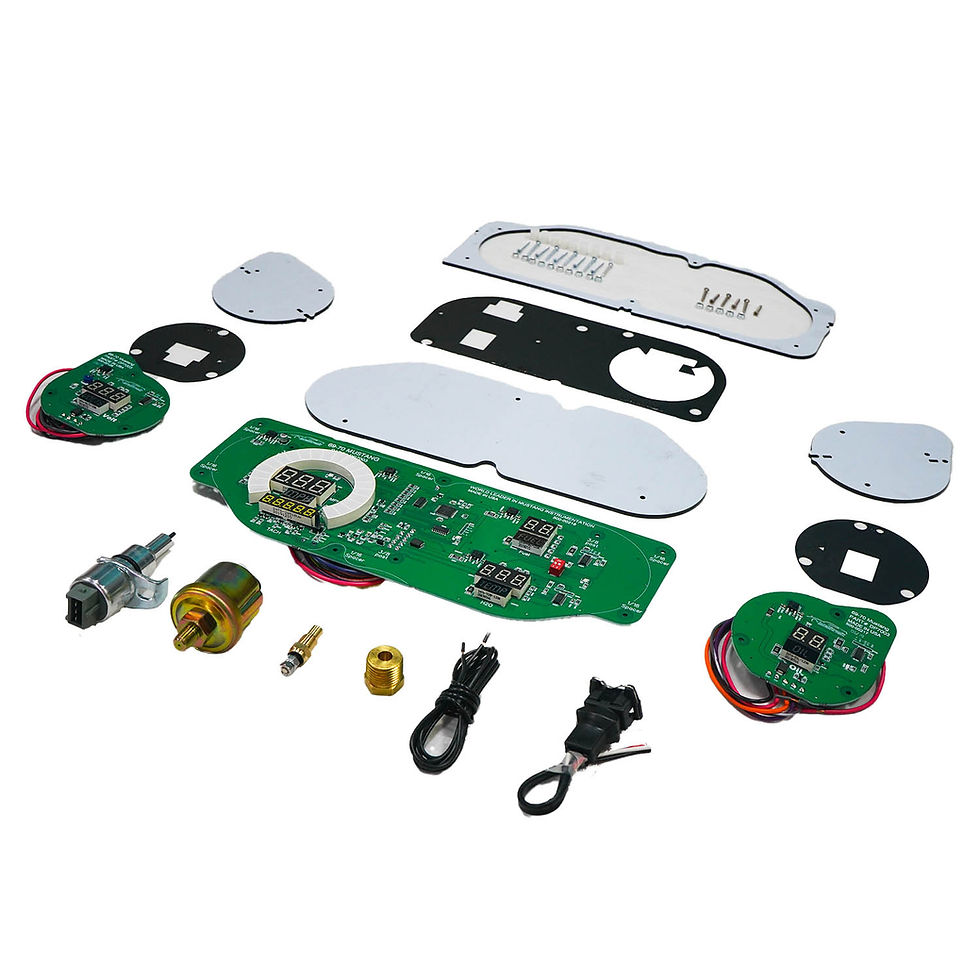

Calling all 1969-1970 Ford Mustang owners, check out the new 1969-1970 Ford Mustang LED Digital Direct Fit Replacement Gauge Panel from Intellitronix. The 69-70 Ford Mustang LED Digital Gauge Panel features a Speedometer and Tachometer combination along with 4 other gauges. The replacement panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.


Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration,

regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use Intellitronix S9024 universal speedometer sending unit included, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9900 RPM in 100 RPM increments.



Water Temperature reads 18-255 °F range with sending unit S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request.



Oil Pressure displays with 0-99 PSI range. Oil pressure sender included.



Voltmeter displays 7.0-18.5 volts range and no sending unit is required.



Fuel Level displays 0-99% range in 1% increments and works with existing Ford fuel level sending unit.



The 1969-1970 Ford Mustang LED Digital Direct Fit Replacement Gauge Panel features turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.



BEZEL NOT INCLUDED



FEATURES:



AVAILABLE COLORS:  White, Red, Blue, Teal and Green

SPEEDOMETER READING:  Order your speedometer in either MPH or KPH



ACCESSORIES:  All required sending and sensor units are included.



GPS Option: The Intellitronix GPS Speedometer Sending Unit offers high-accuracy readings with a simple 3-wire hookup, compatible with standard 4000, 8000, or 16000 pulse-per-mile speedometers. With built-in GPS technology and a compact design, it eliminates speed inaccuracies from tire changes or gear ratios for unmatched precision.

1969-1970 Ford Mustang LED Digital DP7003

SKU: DP7003
$459.95Price
colors
  • If you have a LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
