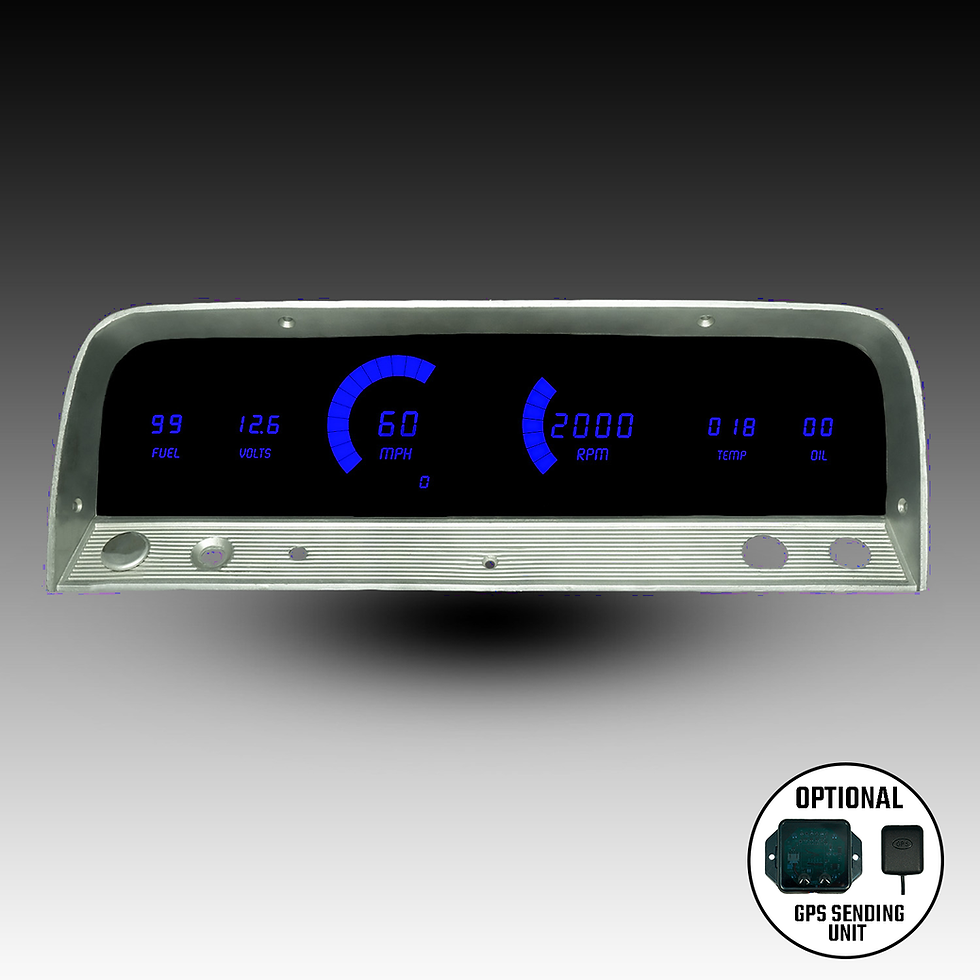

1964-66 Chevy Truck LED Digital Gauge Panel - DP6002
Your 1964-66 Chevy Truck will be the talk of the town with Intellitronix 64-66 Chevy Truck LED Digital Gauge Replacement Dash. Welcome to the next stage of innovation mixed with ingenuity. Comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
The Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-9900 RPM in 100 RPM increments.
Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out.
The Oil Pressure displays 0-100 PSI range. Oil pressure sender included.
Voltmeter displays 7.0-25.5 volts range and no sending unit is required.
Fuel Level displays with 0-99% range in 1% increments and works with existing GM 0-30 OHM fuel level sending unit.
When ORDERING please make a note at checkout what your vehicles OHMS is, because the Fuel Level gauge will have to be programmed for your specific OHMS.
The 1964-66 Chevy Truck LED Digital Gauge Replacement Panel does NOT fit GMC trucks.
The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
GPS Option: The Intellitronix GPS Speedometer Sending Unit offers high-accuracy readings with a simple 3-wire hookup, compatible with standard 4000, 8000, or 16000 pulse-per-mile speedometers. With built-in GPS technology and a compact design, it eliminates speed inaccuracies from tire changes or gear ratios for unmatched precision.
1964-1966 Chevy Truck LED Digital DP6002
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
